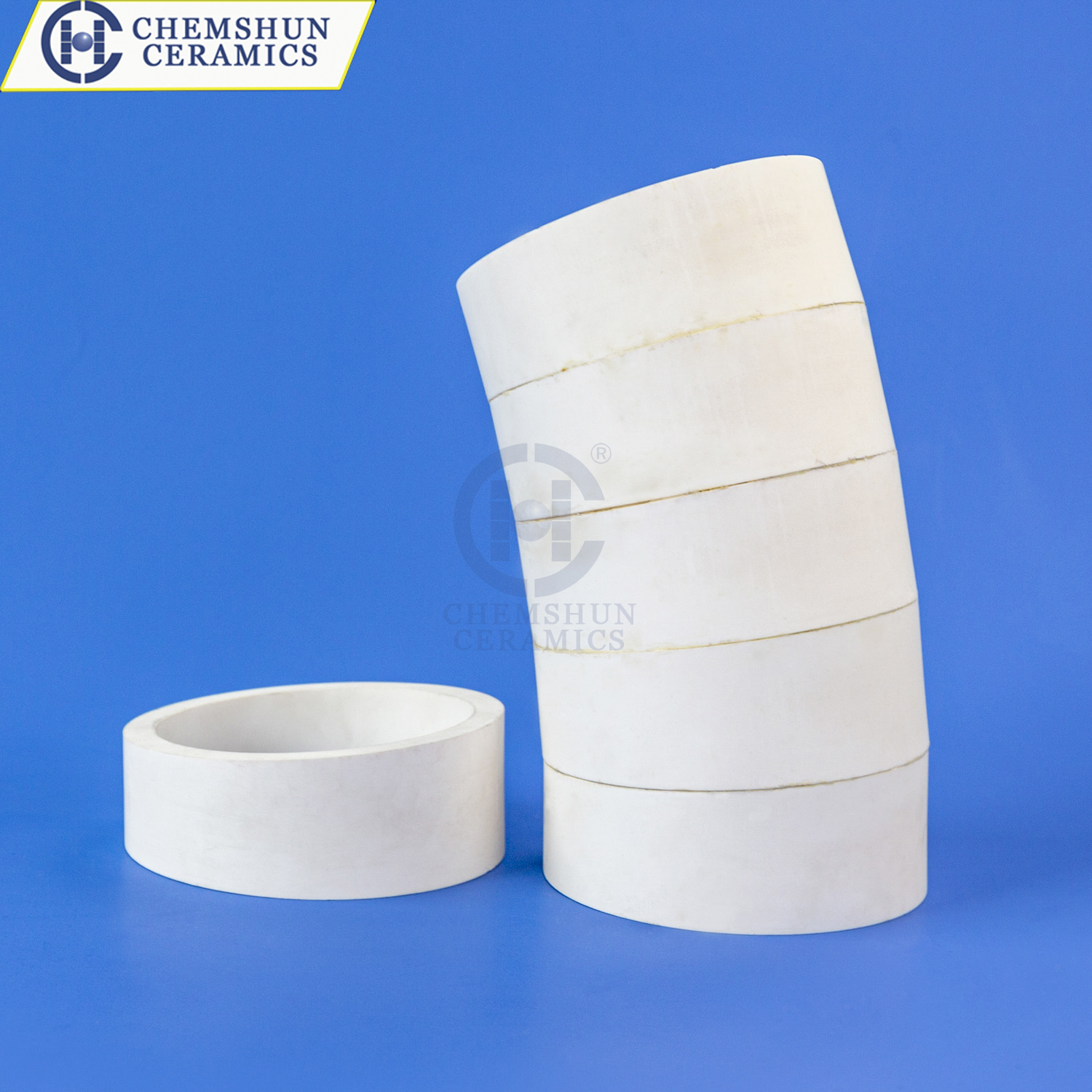

Iso-pressing Alumina Ceramic Bend Pipe Cone for Coal Conveying System

Short Description:

Chemshun Ceramic bend pipe also named ceramic cones is pressed by ISO method to form a solid ceramic pipe .this bend pipe has various dimensions for different fields of wearable conditions. Ceramic Bends or Ceramic Cones is characterized with excellent wear resistant property and long service life; smooth surface, low friction coefficient; resistant to most kinds of acid, alkali and salt; low thermal expansion coefficient and thermal conductivity, operating temperature can be up to 1500 cent-degree max, Ceramic cone typical application is lined in steel pipe with flange .which is used to protect steel pipe without acid and alkaline corrosion when conveying oil, slurry , gas, solid mineral materials.

Send email to us

Product Detail

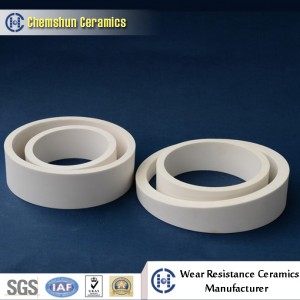

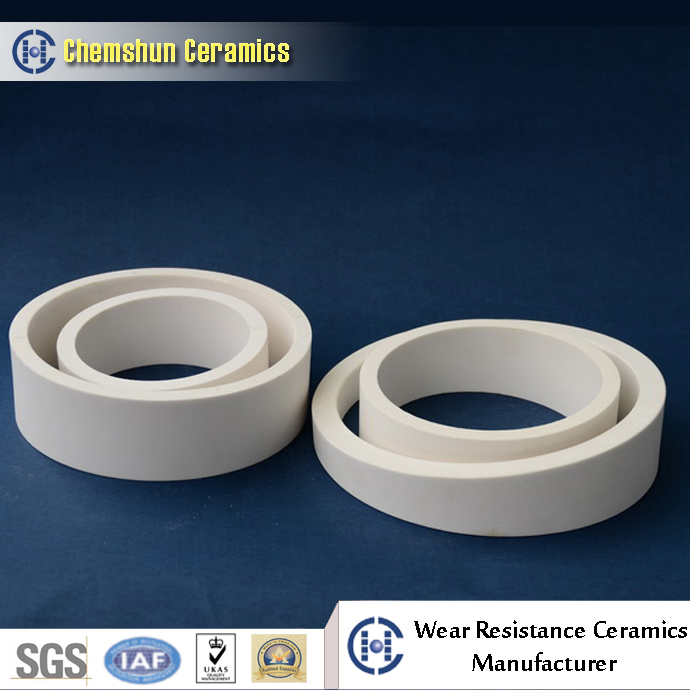

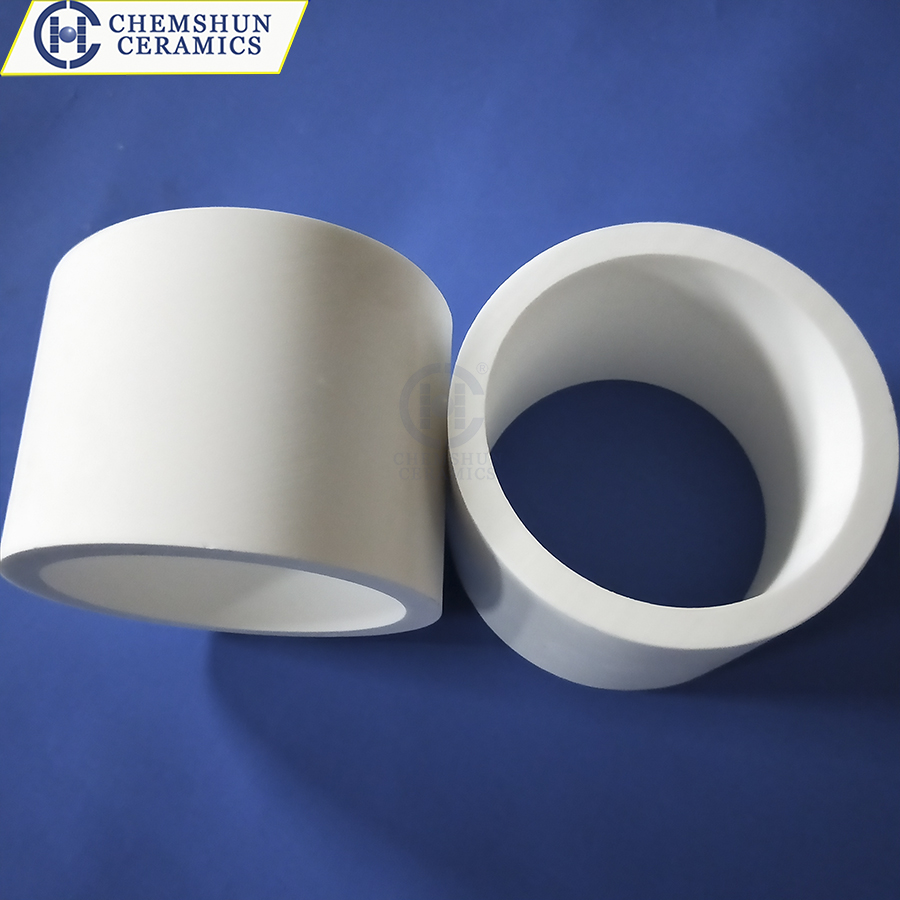

Chemshun wear resistant alumina ceramic pipe liner protection conveying pipeline from abrasion damage.

Product Characteristics:

1)High hardness.
2)Superior abrasion.
3)Corrosion and chemical resistance.
4)Light weight.
5)Low maintenance cost: Super wear-resistance reduce the maintenance frequency and also the maintenance cost.
6)Good fluidity : Smooth surface ensure the free flow of material without blocking.

Chumshun Pipe Size Available:

Chemshun pipe Sizes
ID: 10mm~500mm	Thickness and length according to customer’s needs
more sizes and customized size acceptable

Application industry:

1)mining industry
2)Cement industry
3)Coal handling industry
4)Steel industry
5)Port industry
6)Power plant

Chemical Composition:

Al2O3	SiO2	CaO	MgO	Na2O
92~93%	3~6%	1~1.6%	0.2~0.8%	0.1%

Physical properties:

Physical properties:	>3.60
Apparent porosity (%)	0
Flexural Strength (20℃, Mpa)	280
Compressive strength (20℃, Mpa)	850
Rockwell hardness (HRA)	80
Vickers hardness (hv)	1050
Moh’s hardness (scale)	≥9
Thermal Expansion (20-800℃, x10-6/℃)	8
Crystal Size (μm)	1.3~3.0
