1) Excellent abrasion resistance;
2) Excellent impact resistance;
3) Excellent hardness;
4) Excellent corrosion resistance (resist the strong alkaline, strong acid slag and liquefied materials);
5) Excellent heat resistance (up to 1500℃);
6) Smooth surface can reduce barrage and friction coefficient to prolong the device working life;
7) Low density can reduce the lined equipment weight and improve the equipment working effectiveness.
|
Properties |
Unit |
Chemshun 92 |
Chemshun 95 |
|
Al2O3 |
% |
92 |
95 |
|
Density |
g/cm3 |
3.6 |
3.65 |
|
Moh’s Hardness |
Grade |
9 |
9 |
|
Products |
Size in mm (L*W*T) or (S*T) |
||
|

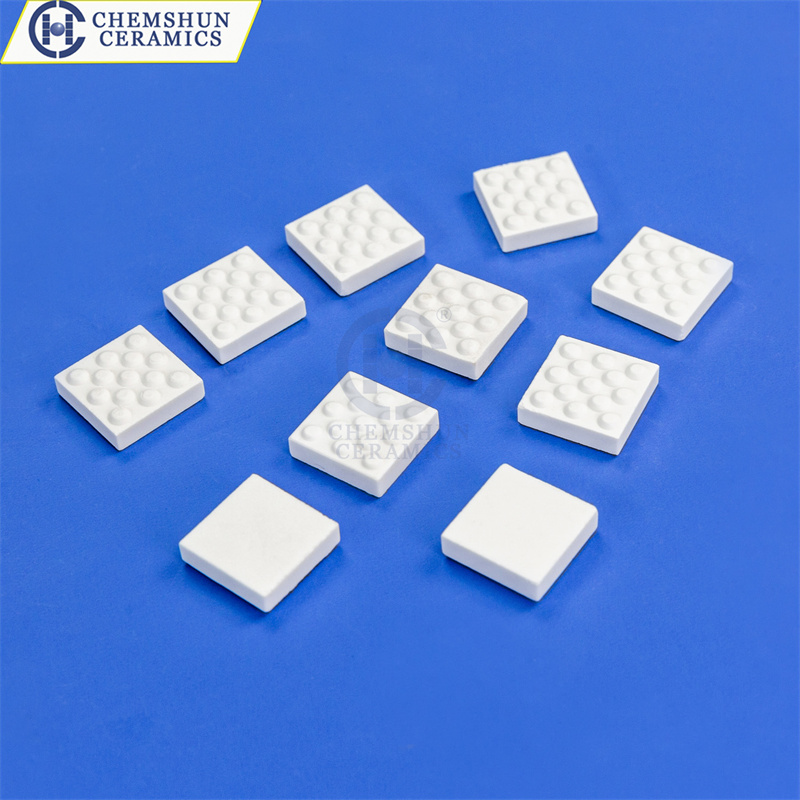

Ceramic Square Tile |
10*10*2~10, 17.5*17.5*2~15, 20*20*2~10, 33*33*5~25, etc. |
||
|

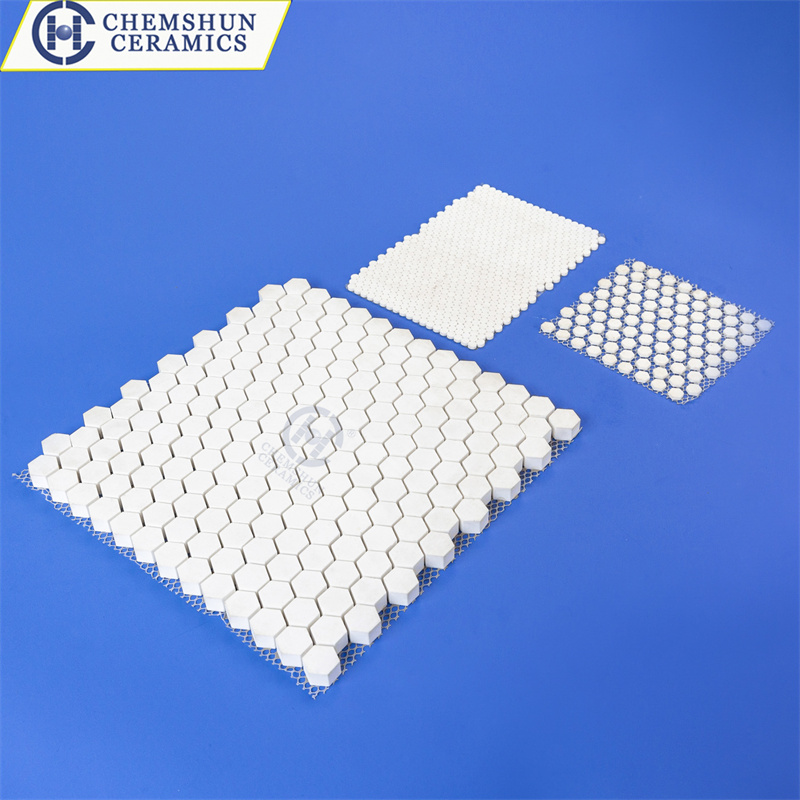

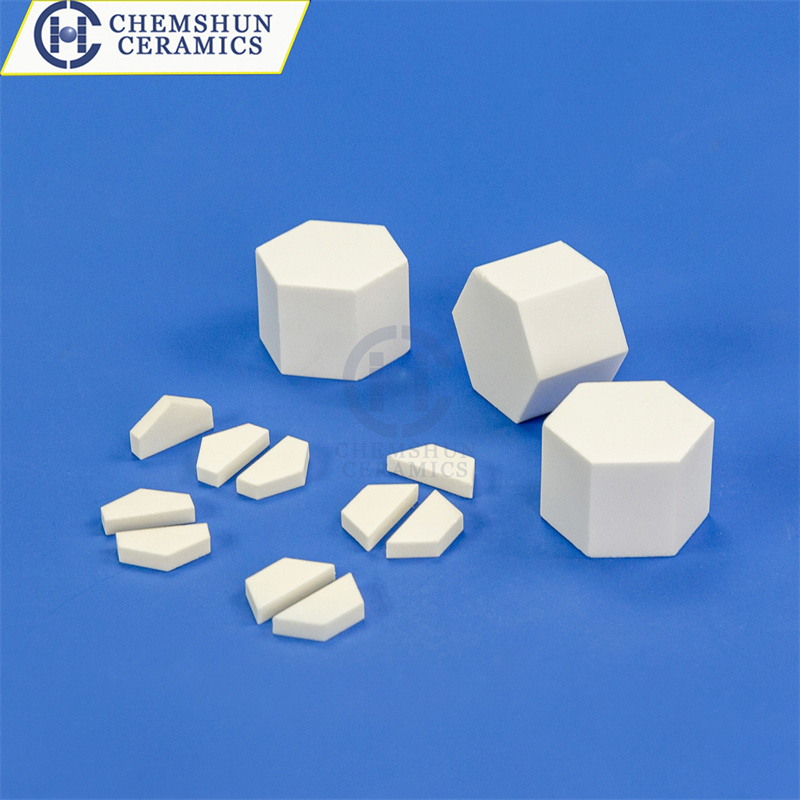

Ceramic Hexagonal tile |
6*3~6, 11*3~25, 12*3~25, 19*3~25, etc. |
||
|

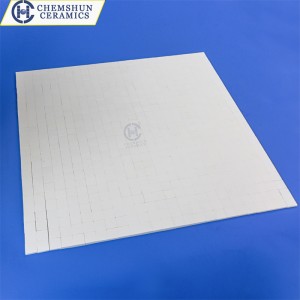

Hex/Square Tile Mat |
32*32*32, 40*40*40, etc. |
||
|
Material of Mats |
Paper, Nylon Mesh, Acetate Cloth, etc. |
||
|
Application Industry from Chemshun |
||
|
Industry |
Equipment System |
Equipment parts |
| Cement | Pre-blending system for crashing limestone and crude fuel | Chute,Bunker,Pulley lagging,discharge cone |
| Raw mill system | Feed chute,Retaining ring,Scraper plate,Seal ring,Pipeline,Bucket guard,Cyclone,Powder concentrator body,Bunker | |
| Cement mill system | Chute,Bunker,Fan vane wheel,Fan casing,Cyclone,Circular duct,Conveyer | |
| Ball mill system | Pulverizer exhauster's body and vane wheel,Powder concentrator's body,Pulverized coal's pipeline,Hot air duct | |
| Sintering system | Inlet/Outlet bend,Wind value plate,Cyclone,Chute,Dust collector's pipe | |
| Afterheat system | Separator's pipeline and wall | |
| Steel | Raw material feeding system | Hopper,Silo |
| Batching system | Mixing bunker,Mixing barrel,Mixing disk,Disk pelletizer | |
| Sintered material transport system | Hopper,Silo | |
| Dedusting and Ash discharge system | Dedusting pipeline,Bend,Y-piece | |
| Coking system | Coke hopper | |
| Medium-speed mill | Cone,Separation buffles,Outlet pipe,Pulverized coal's pipeline,Burner cone | |
| Ball mill | Classifier,Cyclone separator,Bend,Powder concentrator's Inner shell | |
| Thermal power | Coal handling system | Bucket wheel machine,Coal Hopper,Coal Feeder,Orifice |
| Ball mill system | Separator's pipe,elbow and cone,Coal mill's elbow and straight tube | |
| Medium-speed mill | Coal mill body,Separation buffles,Cone,Pipeline,Elbow | |
| Fall mill | Pulverized coal's Pipeline and Elbow | |
| Dedusting system | Dedusting's Pipeline and Elbow | |
| Ash discharge system | Fan duster's shell,Pipeline | |
| Port | Transporting material system | Bucket wheel machine's disk and hopper,Transfer point's hopper,Unloader's hopper, |
| Smelting | Transporting material system | Measuring hopper,Coke hopper,Vibrating screen's chute,Head valve,Intermediate Bin,Tail bin |
| Batching system | Batch hopper,Mixing machine | |
| Burning system | Ash bucket,Pump calcine tube,Hopper | |
| Dedusting system | Dedusting's Pipeline and Elbow | |
| Chemical | Transporting material system | Hopper,Silo |
| Dedusting system | Dedusting's Pipeline and Elbow | |
| Processing equipment | Vibromill liner | |
| Coal | Coal handling system | Bucket wheel machine,Coal Hopper,Coal Feeder,Silo |
| Coal washing system | Hydrocyclone | |
| Mining | Transporting material system | Hopper,Silo |
We accept custom orders.
If you want to know more product information, please feel free contact us and we'll afford you the most suitable product and best service!
