Abrasion Resistant Alumina Ceramic Wear Plate for Industry Maintance

Short Description:

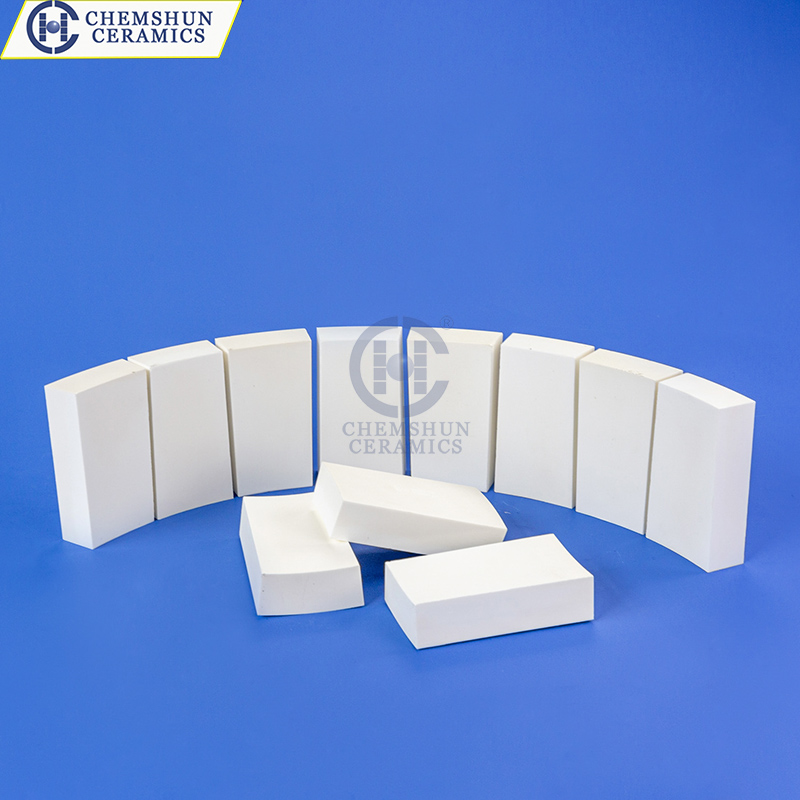

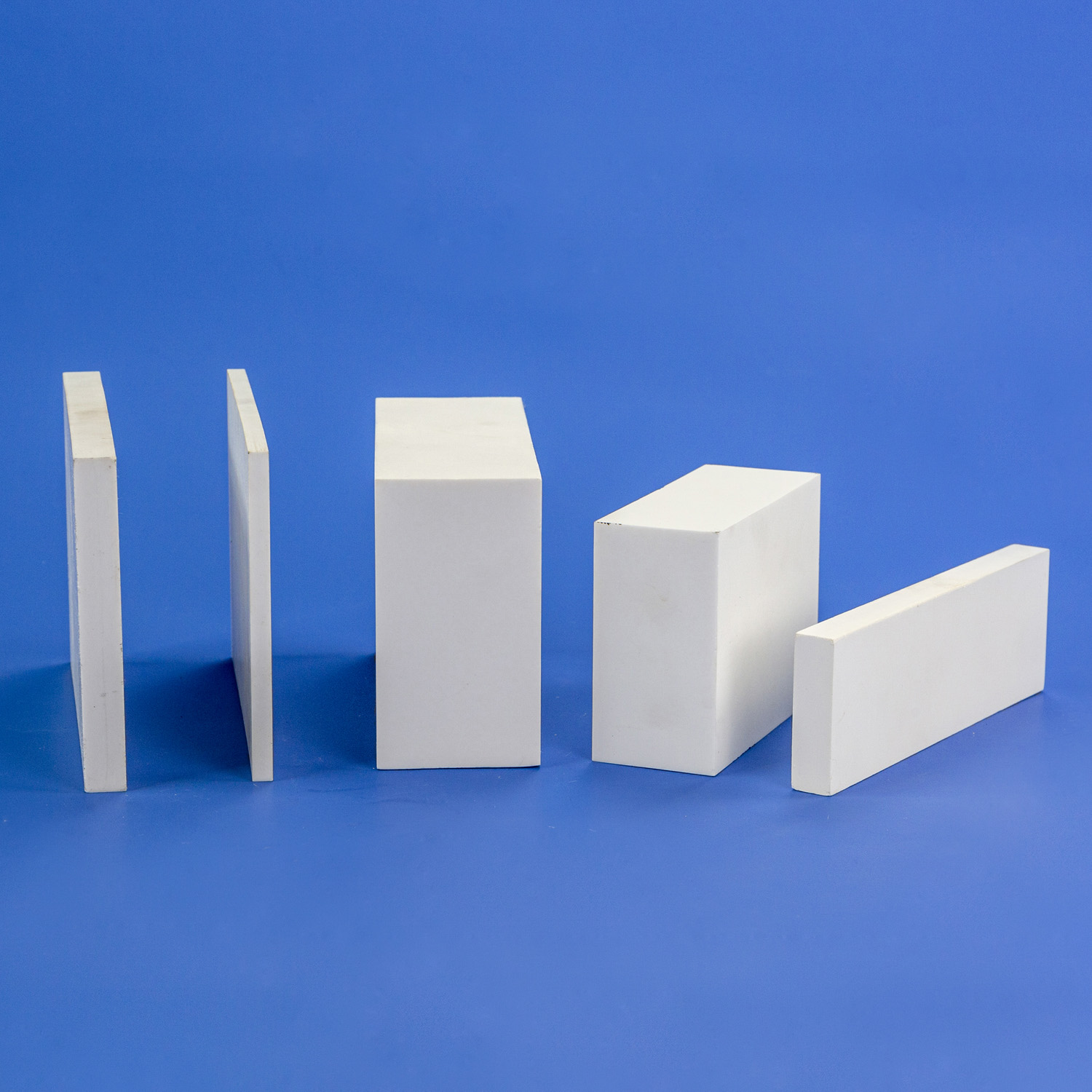

Chemshun wear resistant ceramic lining tiles includes 92% Al2O3 series, 95% Al2O3 series and Al2O3 + ZrO2 composition series, which can effectively protect your equipment or machines against wear ,wherever abrasive materials are mined , transported and processed, especially in the industries of mining , primary steel ,fire power plant, cement, port etc.Chemshun Ceramic lining tiles help users reduce their downtime and improve their productivity Chemshun could afford customers the optimum lining tiles accommodate the detailed equipment wear protection demand with wear ceramic lining : plain tile , weldable tile , trapezoidal tile , curved & lock tile , and engineering tile with special geometries.

Send email to us

Product Detail

Feature
· Excellent corrosion resistance property
· Easily handled size and weight
· Excellent heat resistance property
· Excellent impact resistance property
· Fast and safe installation
· Lower production and maintenance cost

Chemshun Ceramic Advantages
· Professional technical team to afford CAD designs
· Professional installation team to afford install service
· Well established process as per international standards
· Accept the standard and pre-engineered tiles

Dimensions

ITEM NO.	PRODUCT	LENGTH x WIDTH	THICKNESS	Q’TY PER BOX
		mm	mm	pcs
1	PLAIN TILE	100 x 100	6	50
2	PLAIN TILE	100 x 100	12	20
3	PLAIN TILE	100 x 100	15	15
4	PLAIN TILE	100 x 100	25	10
5	PLAIN TILE	100 x 100	50	5
6	PLAIN TILE	100 x 25	6	135
7	PLAIN TILE	150 x 100	6	50
8	PLAIN TILE	150 x 100	12	20
9	PLAIN TILE-GLAZED	150 x 100	12	20
10	PLAIN TILE	150 x 100	15	15
11	PLAIN TILE	150 x 100	25	10
12	PLAIN TILE-GLAZED	150 x 100	25	10
13	PLAIN TILE	150 x 100	50	5
14	PLAIN TILE	150 x 50	12	40
15	PLAIN TILE	150 x 50	25	20
16	PLAIN TILE	150 x 25	6	135
17	PIPE TILE	150 x 31/35	12	57
18	PIPE TILE	150 x 39/42	12	40
19	PIPE TILE	150 x 50/53	12	40
20	PIPE TILE	150 x 45/47	12	40
21	PIPE TILE	150 x 27/35	25	20
22	PIPE TILE	150 x 35/42	25	20
23	PIPE TILE	150 x 47/53	25	20
24	PIPE TILE	150 x 43/47	25	20
25	PIPE TILE	150 x 43/47	50	10
26	WELDABLE TILE	100 x 100	12	20
27	WELDABLE TILE	100 x 100	15	16
28	WELDABLE TILE	100 x 100	25	10
29	WELDABLE TILE	100 x 100	50	5
30	WELDABLE TILE	150 x 100	12	20
31	WELDABLE TILE	150 x 100	15	16
32	WELDABLE TILE	150 x 100	25	10
33	WELDABLE TILE	150 x 100	50	5

Application in Industries

Industry	Equipment system	Equipment parts
Cement	Pre-blending system for crashing limestone and crude fuel	Chute, bunker, pulley lagging, discharge cone
	Raw mill system	Feed chute, retaining ring, scraper plate, seal ring, pipeline, bucket guard, cyclone, powder concentrator body, bunker
	Cement mill system	Chute, bunker, fan vane wheel, fan casing, cyclone, circular duct, conveyer
	Ball mill system	Pulverizer exhauster’s body and vane wheel, powder concentrator’s body, pulverized coal’s pipeline, hot air duct
	Sintering system	Inlet/outlet bend, wind value plate, cyclone, chute, dust collector’s pipe
	Afterheat system	Separator’s pipeline and wall
Steel	Raw material feeding system	Hopper, silo
	Batching system	Mixing bunker, mixing barrel, mixing disk, disk pelletizer
	Sintered material transport system	Hopper, silo
	Dedusting and Ash discharge system	Dedusting pipeline, bend, y-piece
	Coking system	Coke hopper
	Medium-speed mill	Cone, separation buffles, outlet pipe, pulverized coal’s pipeline, burner cone
	Ball mill	Classifier, cyclone separator, bend, powder concentrator’s inner shell
Thermal power	Coal handling system	Bucket wheel machine, coal hopper, coal feeder, orifice
	Ball mill system	Separator’s pipe, elbow and cone, coal mill’s elbow and straight tube
	Medium-speed mill	coal mill body, separation buffles, cone, pipeline, elbow
	Fall mill	Pulverized coal’s pipeline and elbow
	Dedusting system	Dedusting’s pipeline and elbow
	Ash discharge system	Fan duster’s shell, pipeline
Port	Transporting material system	Bucket wheel machine’s disk and hopper, transfer point’s hopper, unloader’s hopper,
Smelting	Transporting material system	Measuring hopper, coke hopper, vibrating screen’s chute, head valve, Intermediate bin, tail bin
	Batching system	batch hopper, mixing machine
	Burning system	Ash bucket, pump calcine tube, hopper
	Dedusting system	Dedusting’s pipeline and elbow
Chemical	Transporting material system	Hopper, silo
	Dedusting system	Dedusting’s pipeline and elbow
	Processing equipment	Vibromill liner
Coal	Coal handling system	Bucket wheel machine, coal hopper, coal feeder
Coal	Coal washing system	Hydrocyclone
Mining	Transporting material system	Hopper, silo

Technical Data Sheet

S.No.	Attributes	Unit	CHEMSHUN 92 I	CHEMSHUN92 II	CHEMSHUN 95	CHEMSHUN ZTA
1	Alumina Content	%	92	92	95	70-75
1	ZrO2	%				25-30
2	Density	g/cc	≥3.60	≥3.60	>3.65	≥4.2
3	Color	-	White	White	White	White
4	Water Absorption	%	<0.01	<0.01	0	0
5	Flexural Strength	Mpa	270	300	320	680
6	Moh’s Density	Grade	9	9	9	9
7	Rock Well Hardness	HRA	80	85	87	90
8	Vickers Hardness(HV5)	Kg/mm2	1000	1150	1200	1300
9	Fracture Toughness (Min)	MPa.m1/2	1000	3-4	3-4	4-5
10	Compressive strength	Mpa	850	850	870	1500
11	Thermal Expansion Coefficient (25-1000ºC)	1×10-6/ºC	8	7.6	8.1	8.3
12	Maximum operation temperature	ºC	1450	1450	1500	1500
